Railless roof mounting system

Railless Roof Mounting is designed for trapezoid steel roofing sheet, the installation is easy and convenient.
  • Item NO.:

    YL-RM-R
  • Lead Time:

    Within 15days after payment
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • Color:

    Nature
  • Installation Site:

    Trapezoid roof sheet
  • Material:

    Alu6005-T5
  • Surface:

    Anodized
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Product Detail

Product Name: Railless roof mounting system


Product Description:

Yanglin Railless Roof Mounting is designed for trapezoid steel roofing sheet. It can be fixed on roof directly without Alu rail, the installation is easy and convenient.


Brief Introduce:

Install Site: Trapezoid tin roof

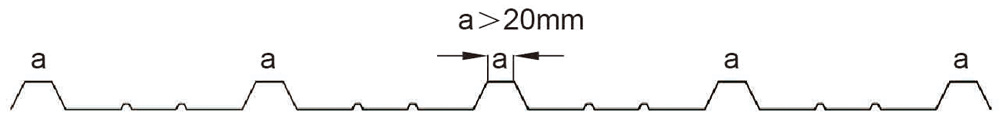

Require: “a“ should ≥20mm
Max Building Height: Up to 20m(≈65ft).
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.



Installation Guide:

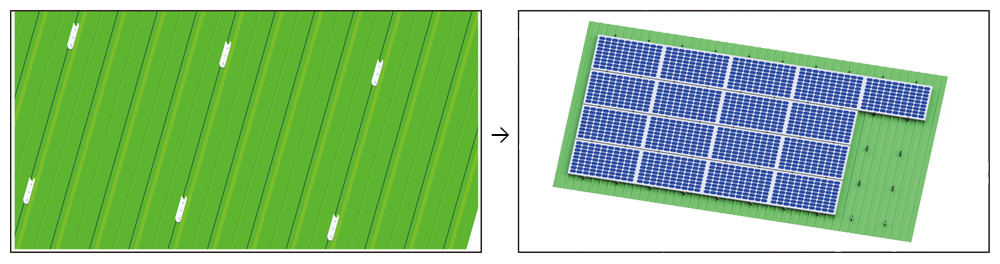

Step 1: Install railless clamp hook on roofing as per technical drawing.

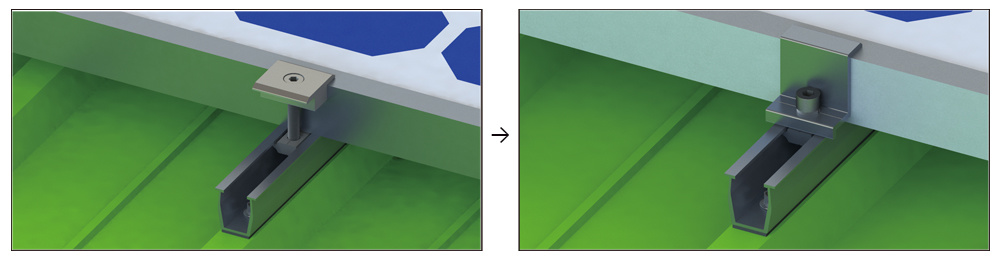

Step 2: Fix solar panel on railless clamp hook until finished.

mounting solar panels on tile roof

Detail:

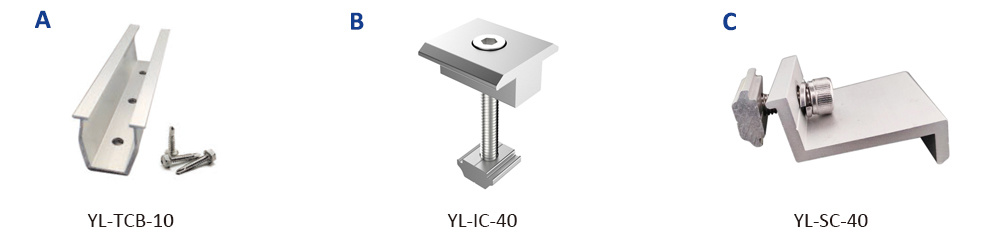

Components List:

A: Railless clamp hook

B: Mid clamp

C: End clamp

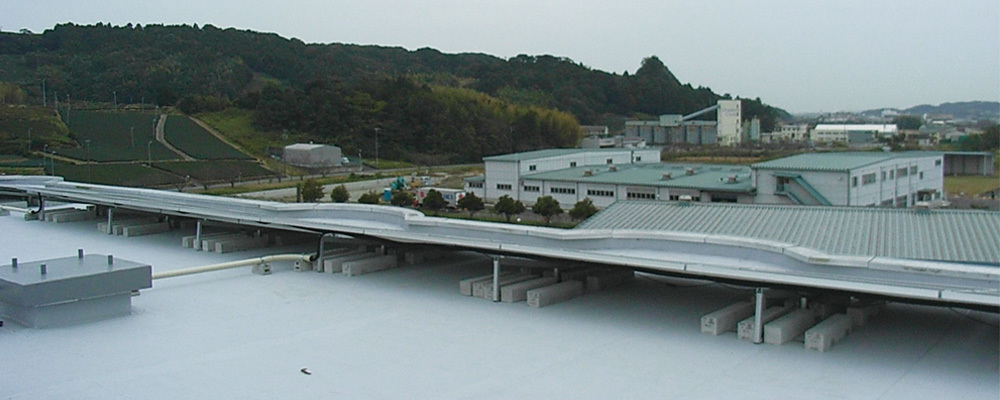

Project:
