Trapezoidal Metal Roof Mounting Railless Solution
Railless solar mounting sysystem is an mounting system for Trapezoidal Metal Roof. It can save materials and accessories to the maximum. It's suit for most of trapezoidal metal roof or sandwich roof.
-
Item NO.:
YL-RM-RU -
Lead Time:
Within 15 days after payment -
Product Origin:
China -
Shipping Port:
Xiamen Port, China -
Payment:
TT, LC -
Color:
Nature -
Installation Site:
Trapezoid roof sheet -
Material:
Alu6005-T5 -
Surface:
Anodized -
Max Wind Speed:
60m/s -
Snow Load:
1.4KN/m²
- Product Description
-
Product Name: Trapezoidal Metal Roof Mounting Railless Solution
Product Brief Introduce:
Installation site: trapezoid metal roof or sandwich roof
Application: Framed solar panel for any size
Structural materials: Aluminum
Survival wind speed: up to 60m / s
Design snow pressure: up to 1.4KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Quality assurance for 10 yearsInstallation Guide:
Step 1: Install railless clamp hook on roofing as per technical drawing.
Step 2: Install railless clamp hook one by one.
Step 3: Fix solar panel on railless clamp hook by mid clamp or end clamp.
Step 4: Fix solar panel one by one until finished.

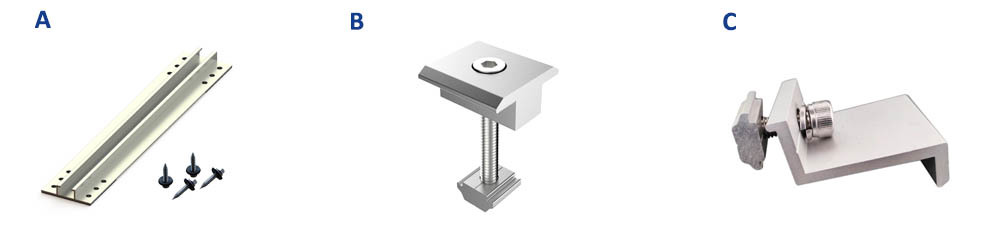

Components List:
A: Railless clamp hook
B: Mid clamp
C: End clamp
