Pitched tin roof mounting for solar panel rooftop

Pitched tin roof mounting have wide application on trapezoid roofing or corrugated roofing. standard components: solar L foot, aluminum rail profiles and solar clamp.
  • Item NO.:

    YL-RM-T
  • Lead Time:

    Within 15days after received deposit.
  • product origin:

    China
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT,LC
  • Color:

    Nature
  • Installation Site:

    Trapezoid roof
  • Material:

    Alu6005-T5
  • Surface:

    Anodized
  • Tilt Angle:

    As roof
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Product Detail

Product Name: Pitched tin roof mounting for solar panel rooftop


Product Description:

YANGLIN Pitched Tin Roof Mounting is made by high quality extruded Aluminum, the weight is light and it’s convenient. It’s easy to install and can work for any solar modules.


Brief Introduce:

Install Site: Pitch Tin Roof
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.

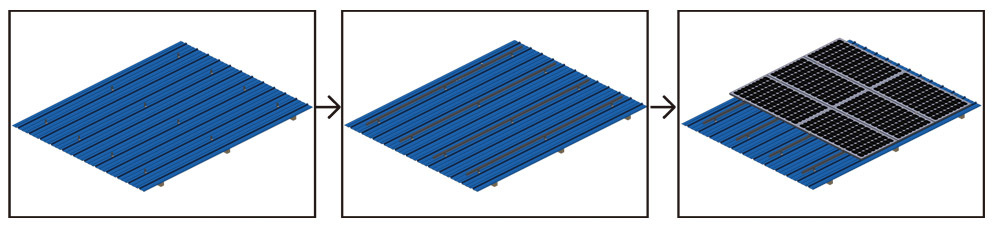

Installation Guide:

Step 1: Install L foot on tin roofing.

Step 2: Fix solar rail on L foot and lock by T modules set.

Step 3: Put solar panel on rail and fix with solar clamp.

solar structure

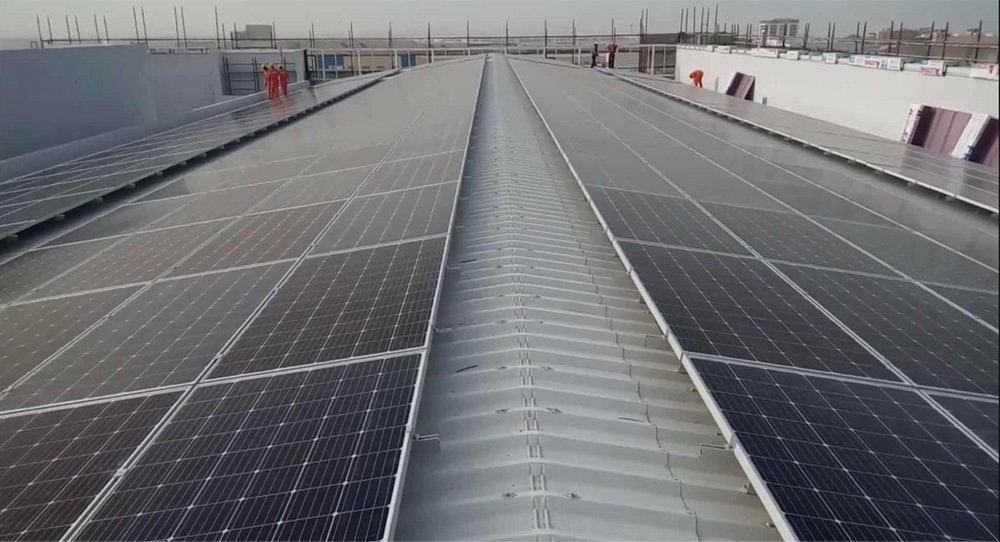

Project

GET A FREE QUOTE
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
