Galvanized Steel solar carport structures residential

YANGLIN residential solar carport is configured with one or two car spaces between two colums support, it can design single, double or continue as your need.
  • Item NO.:

    YL-CM-3
  • Lead Time:

    Within 20 days after deposit.
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • products inventory:

    1
  • Color:

    Silver
  • Installation Site:

    Open field
  • Material:

    Galvanized steel & SS304
  • Surface:

    hot dip galvanized
  • Tilt Angle:

    5-20°
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Ground Clearance:

    2-2.5m
  • Foundation:

    Concrete block
  • Product Detail

Product Name: Galvanized steel residential solar carport


Product Description:

YANGLIN residential solar carport is configured with one or two car spaces between two colums support, it can design single, double or continue as your need. It can be applicated for commercial or residential installation. The whole structure is made of high strength galvanized steel and the fastener is 304SS. Solar carport structure accessories is hot dip galvanized steel rail, rail clamp, solar clamp and steel column support.

Brief Introduce:

Install Site: Open Filed
Module Tilt Angle: 5-20 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Hot dipped galvanized steel (Q235)
Foundation: Concrete block
Carport Spots: 1 lot, 2 lots, 3 lots, 4 lots, etc are all available.


Installation Guide:

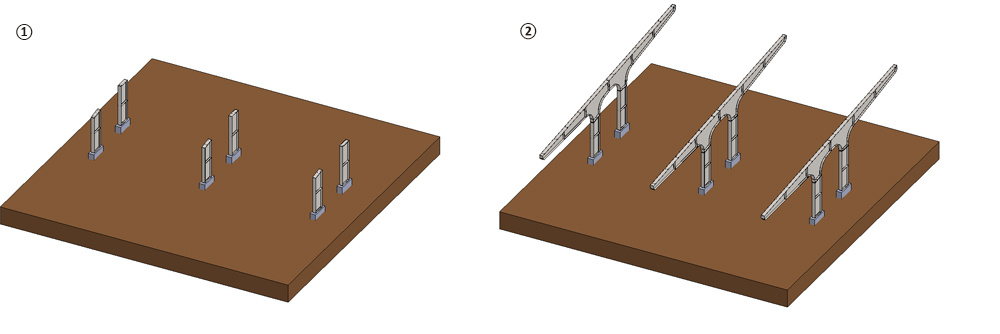

Step 1: Fix down support on block as per drawing request.

Step 2: Fix upper support on down support.

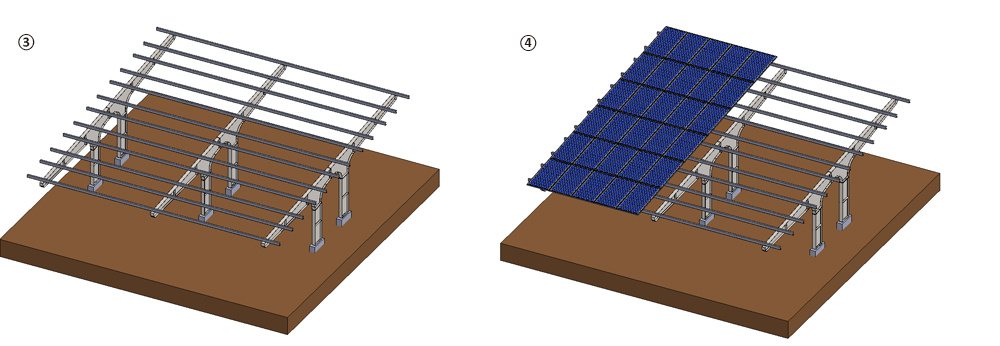

Step 3: Fix rail on support.

Step 4: Fix panel on rail until finished.
