Flat roof ballasted mounting system

Yanglin Ballasted Mounting System is very easy to install without any risk of roof failure. It can be used to install framed or frameless solar modules. Yanglin mounting system bracket has been made PV projects of flat roofs more durable, economical and reliable.
  • Item NO.:

    YL-RM-B
  • Lead Time:

    With in 15days after received payment.
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • Color:

    Nature
  • Installation Site:

    Flat concrete roof
  • Material:

    Alu6005-T5
  • Surface:

    Anodized
  • Tilt Angle:

    As client's need
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Ground Clearance:

    As request
  • Product Detail

Product Name: Flat roof ballasted mounting system


Product Description:

Yanglin Ballasted Mounting System is very easy to install without any risk of roof failure. It can be used to install framed or frameless solar modules. Yanglin mounting system bracket has been made PV projects of flat roofs more durable, economical and reliable.


Brief Introduce:

Light Weight, Convenient and Durable.
Install Site: Flat Concrete Roof or Open Filed
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & Stainless Steel 304
Warranty: 10 years warranty; 25 years service life.

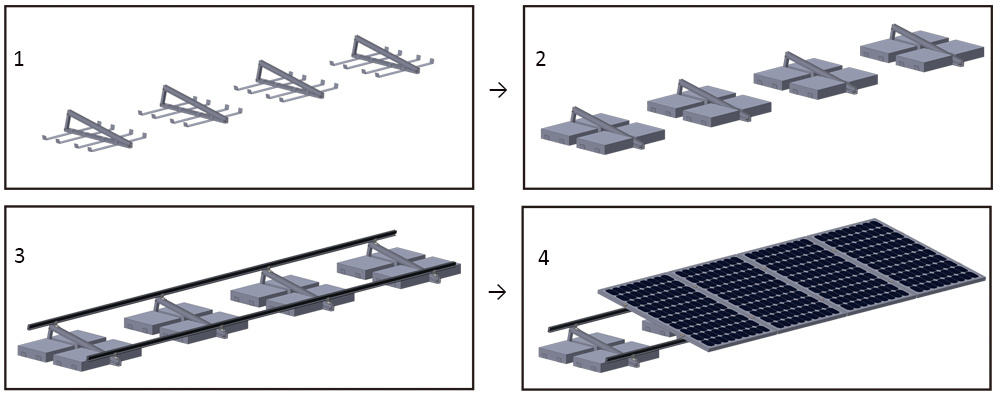

Installation Guide:

Step 1: Fix tripod bracket on flat roof and put ballast pan on bracket.

Step 2: Put concrete block on ballast pan.

Step 3: Fix solar rail on tripod bracket.

Step 4: Fix solar panel on rail.

roof mounting system non penetration

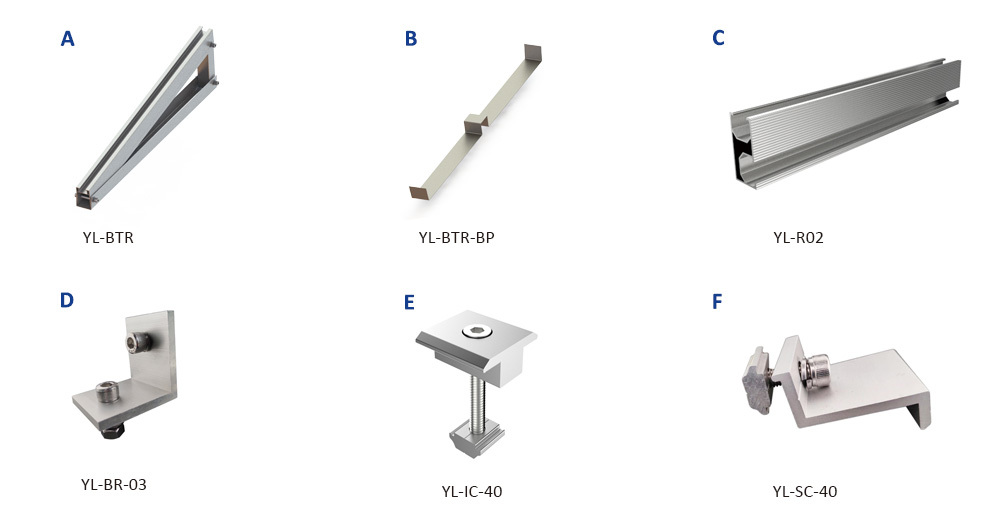

Components List:

A: Ballasted Tripod Bracket

B: Ballasted pan

C: Alu roof rail

D: Rail Clamp

E: Mid clamp

F: End clamp

rooftop solar mounting

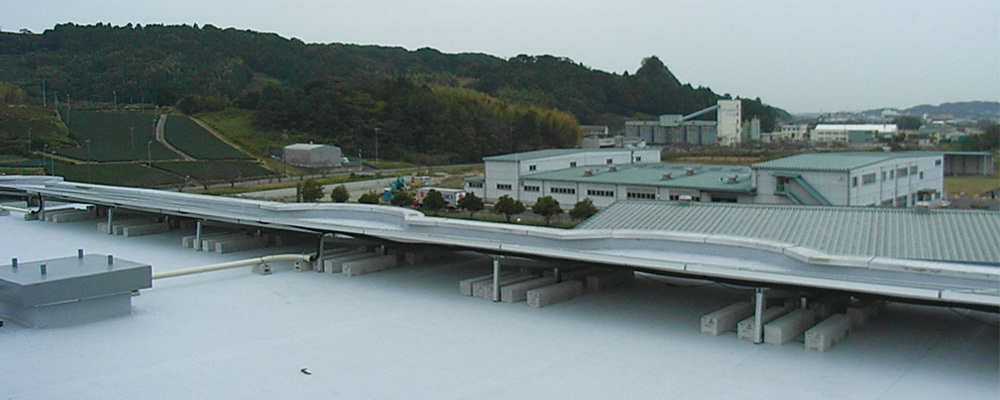

Project:

solar panel pv system

GET A FREE QUOTE
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Solar Panel Flat Roof Mounting Kits
Flat concrete roof mounting system
Flat roof mounting system can be design as fixed or adjustable, it's depend on client's requirement.
Roof Mounting
East west dual tilt flat roof mounting system
Yanglin East West dual tilt mounting system is a exclusive design, it can install more solar panel in the same area, and higher energy production output.
solar pv mounting rails
Mini solar panel roof mounting rails for trapezoid RIB roof
Material: ALuminum 6005-T5, with 2pcs wood screw and 2 EPDM rubber.
Carport Solar
Galvanized steel residential solar carport mounting system
YANGLIN residential solar carport is configured with one or two car spaces between two colums support, it can design single, double or continue as your need.
ground screws
Galvanized steel ground screw for solar power system
Ground screws have a wide variety of apllication, not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, footbridges and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.
Pantile roof hook with double height adjustment
Stainless Steel 304 adjustable double flat tile hook
Double adjustable height flat tile hooks are more convenient for those pan tile style roofs that require individual adjustments.
Ground Mounting Systems for Solar Panels
Galvanized steel solar pile ground mounting system
Ground Mounting System is applicable for open field, it can be installed for residential or large commercial scale installations with easy installation and lowing labor cost. galvanized steel or anodized aluminum alloy material are both available. There are 4 types: Aluminum ground mounting system, steel ground mounting system, pile mounting system1
Railless Solar Mounting
Railless roof mounting system
Railless Roof Mounting is designed for trapezoid steel roofing sheet, the installation is easy and convenient.
