Flat concrete roof mounting system

Flat roof mounting system can be design as fixed or adjustable, it's depend on client's requirement.
  • Item NO.:

    YL-RM-F
  • Lead Time:

    Within 15days after deposit.
  • product origin:

    China
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • Color:

    Nature
  • Installation Site:

    Flat concrete roof
  • Material:

    Alu6005 & SS304
  • Surface:

    Anodized
  • Tilt Angle:

    As request
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Product Detail

Product Name: Flat concrete roof mounting system


Product Description:

YANLGIN Flat Roof Mounting is made of high quality extruded Aluminum, the weight is light and it’s convenient. It’s easy to install and can work for any solar modules. Pre-assembled of solar mounting system components before delivery save your time and labor cost.


Brief Introduce:

Install Site: Flat concrete roof or open field
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.

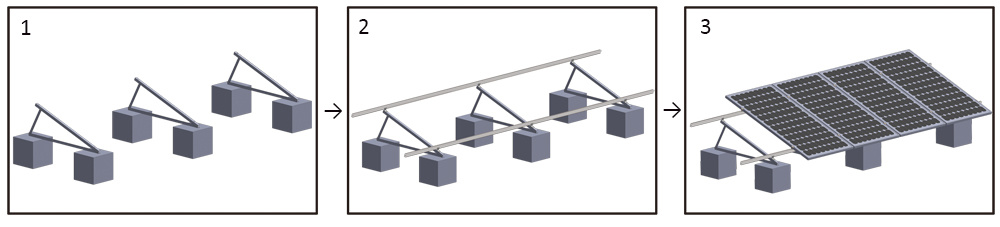

Installation Guide:

Step 1:Fix tripod bracket on concrete block or flat roof.

Step 2: Fix solar rail on tripod bracket and lock by rail clamp.

Step 3: Put solar panel on rail and fix with solar clamp until finished.

flat roof mounting system for solar pv

GET A FREE QUOTE
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
