Aluminum solar ground mounting systems

YANGLIN Aluminum solar ground mounting systems is applicable for open field, it can be installed for residential or commercial project. High pre-assembled makes install efficient and easy. The structure is made by high quality Aluminum alloy.
  • Item NO.:

    YL-AG3
  • Lead Time:

    Within 15days
  • product origin:

    China
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • Installation Site:

    Open field
  • Material:

    Alu6005
  • Surface:

    Anodized
  • Tilt Angle:

    5-40°
  • Max Wind Speed:

    60m/s
  • Snow Load:

    1.4KN/m²
  • Ground Clearance:

    As your requirement
  • Foundation:

    Ground screw or concrete block
  • Product Detail

Product Name: Aluminum solar ground mounting systems


Product Description:

YANGLIN Alu Ground Mounting is applicable for open field, it can be installed for residential or commercial project. High pre-assembled makes install efficient and easy. The structure is made by high quality Aluminum alloy.


Brief Introduction:

Install Site: Open Filed
Module Tilt Angle: 5-40 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Foundation: Ground screw or concrete block
Warranty: 10 years warranty; 25 years service life.

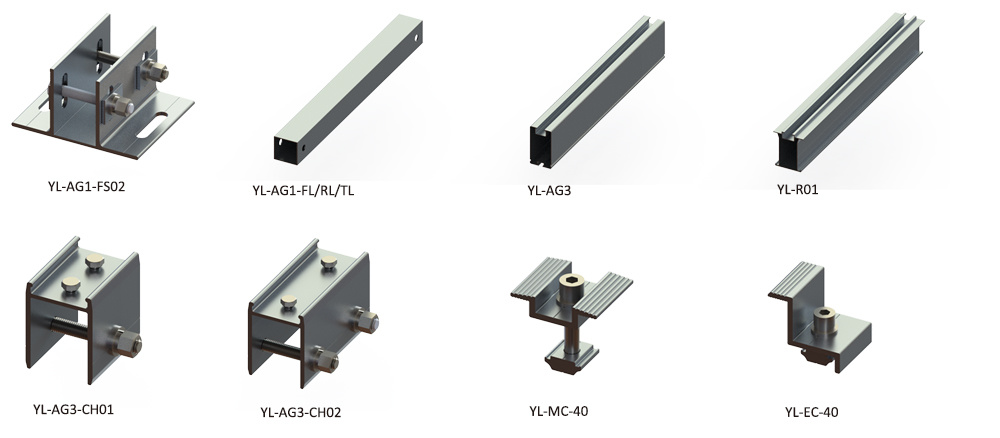

Components List:

ground mount solar

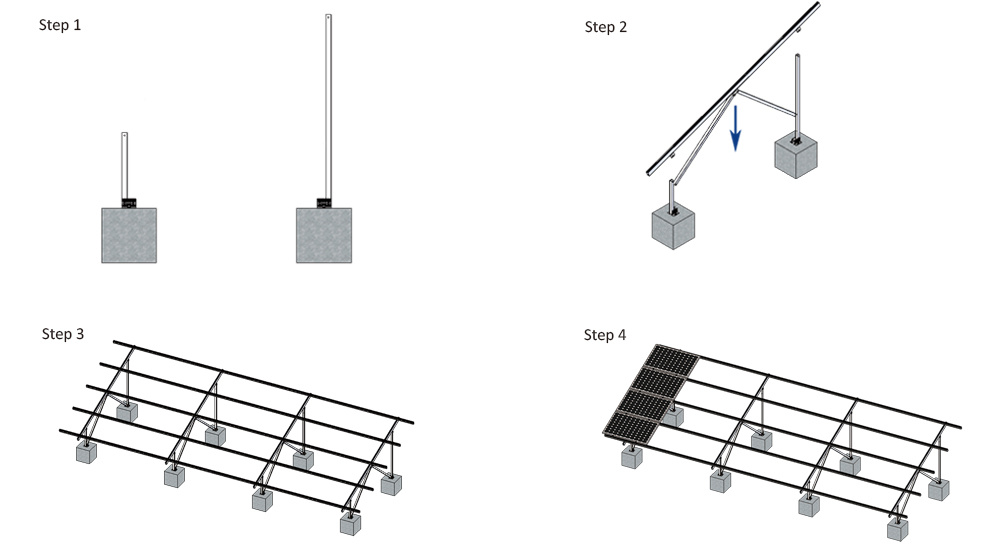

Installation Guide:

Step 1: Fix foundation base on concrete block then Fix front / rear leg on foundation base.

Step 2: Fix pre-assembled beam.

Step 3: Fix ground rail on beam one by one..

Step 4: Fix panel on rail until finished.

Ground Mount Solar System


How to get a quotation

In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:
1: Your solar panel dimension and total quantity;
2: Panel layout plan;
3: Panel tilt angle with horizontal;
4: Project local wind load and snow load that you need mounting system can resist;
5: Ground clearance (lowest distance between panel and ground)

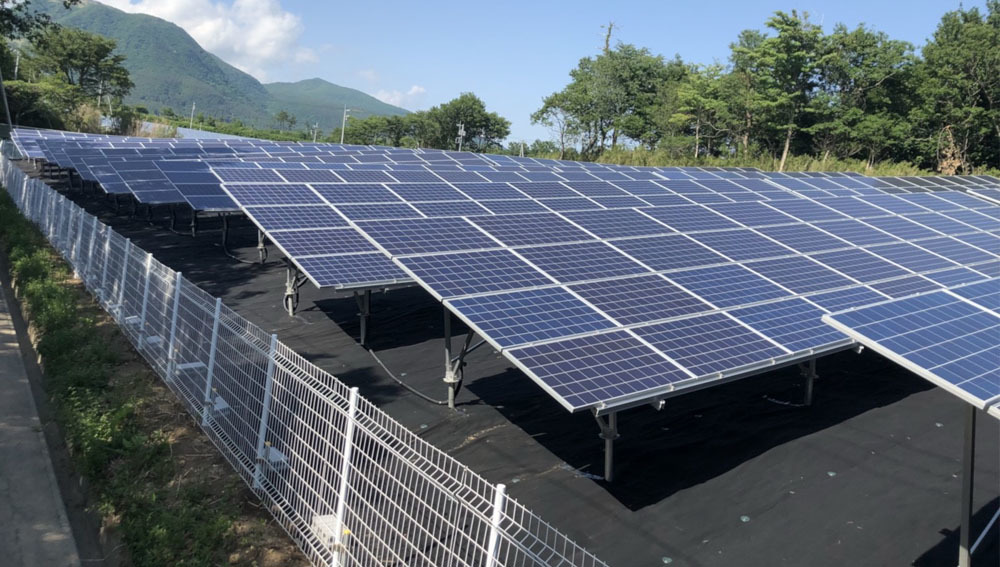

Project:

solar panel rail systems
