48mm or 60mm ground screw for fence post

ground screw for fence post 38mm or 48mm, without nut and with nut are available
  • Item NO.:

    YL-GS-N48x650
  • Lead Time:

    Within 15 days after confirmed
  • product origin:

    China
  • Shipping Port:

    Xiamen Port, China
  • Payment:

    TT, LC
  • min order:

    400
  • Color:

    Silver
  • Total Length:

    650mm
  • Pile Thickness:

    2mm
  • Out Diameter:

    48mm
  • Product Detail

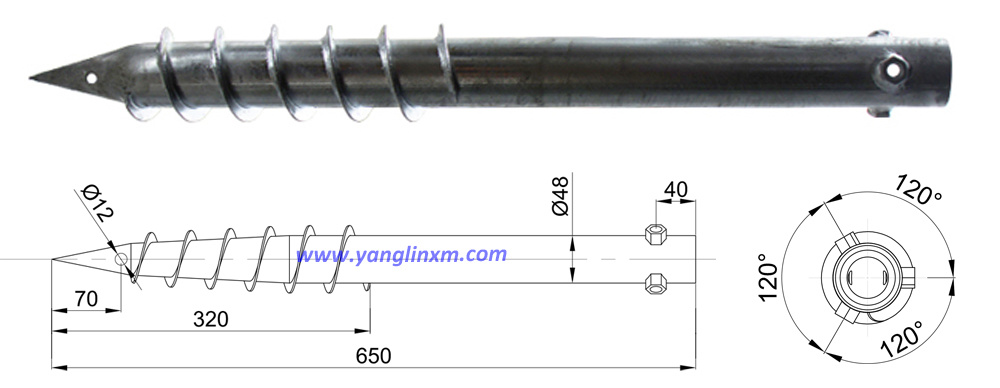

Product Name: 48mm or 60mm ground screw for fence post


YANGLIN ground screw post is made with Hot-Dipped Galvanized Steel to guarantee ground screw integrity for decades to come. Concrete free, you do not need worry about digging, mixing, or waiting for concrete to set.


Tube Diameter: 40/60mm

Tube Thickness: 2mm

Surface finsih: hot dipped galvanized

Tube Length 600mm, 650mm or customized


ground screws nz

How to install?
Hammer the screw in partly after measure, then start screwing it into the ground and keep screwing the ground screw in to the required height.

Just keep a level handy for the install as you'll need to make sure your keeping it on track and true when you first start screwing it in. Once it gets 1/2-3/4 the way in, there's no moving it left/right anymore.

The product is fit for sandy, clay or just plain dirt, you can screwing by a rebar (buy extra) and lock by M10 lag screw ( buy extra); hard rocky ground may be difficult, you may need to use others electric tooling. If the earth is really too dry to install, a water hose should make the installation easier.

For other tube diameter diameter sizes: 68, 76mm, 89mm ground screw, please click here.

FAQ:
What are ground screws?
- Ground screw is a product which like a screw and install in the ground to instead of concrete block, the advantage is save time and labor cost, environment friendly and improve efficiency.

How to install ground screw?
- For small ground screw in sand or clay earth, it can install by hand, but for bigger, it will need by tooling.

※Is it work if we want to customized ground screw length and tube diameter?
- Yes, we have many kinds of ground screw for you choose, if there are not the item you need, you can customized the product as per you actual require.

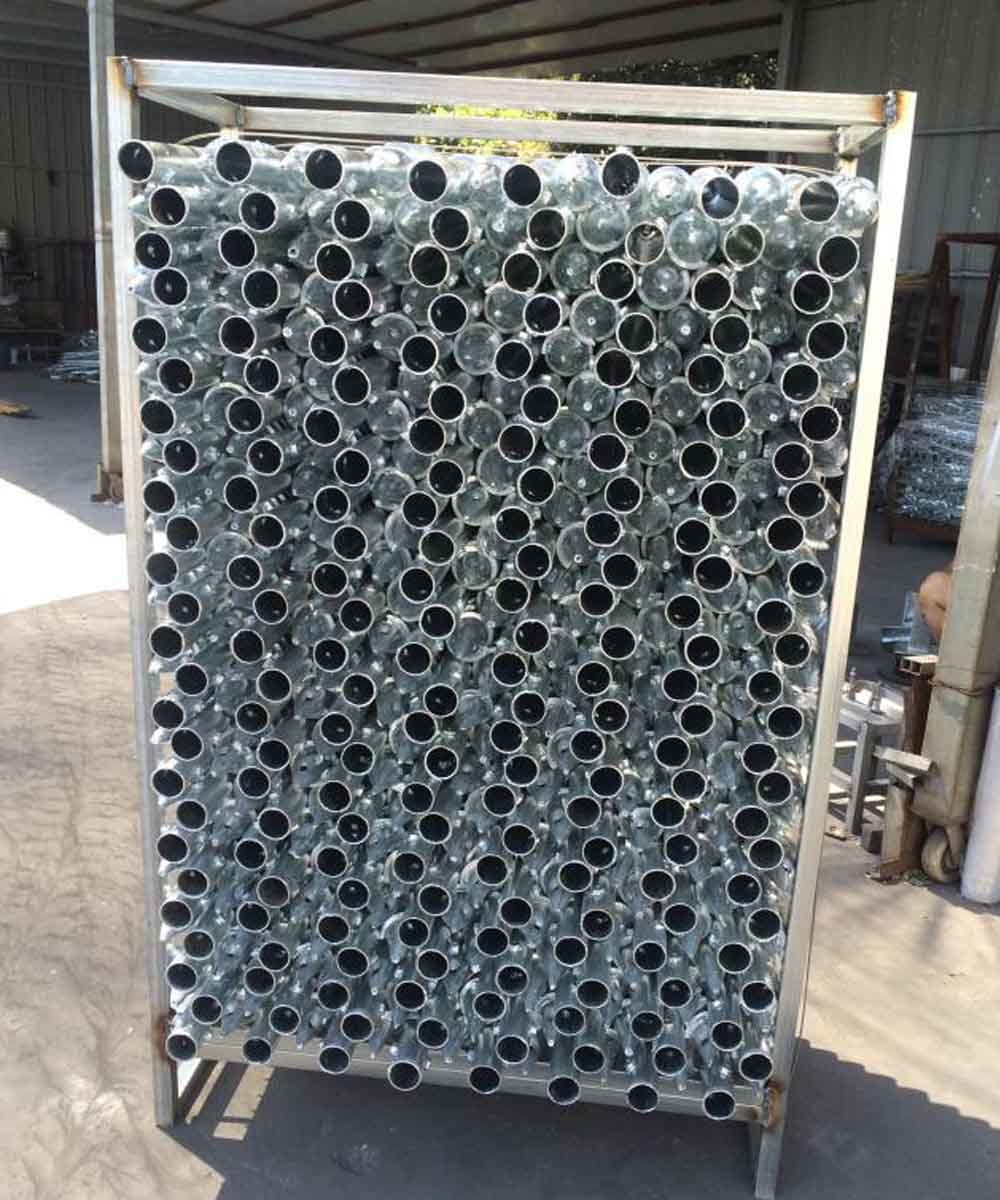

Ground screw post packing by pallet for reference.

screw in ground spike

GET A FREE QUOTE
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
